FP2 NC 2801-100 with CNC control

Technical data

Item condition	Completely refurbished - as new
Item number	2570 (DECKEL Dialog 4) 2580 HEIDENHAIN TNC 320 2590 SIEMENS 840D SL
Operation	CNC with control wheel
Control	DECKEL Dialog 4 HEIDENHAIN TNC 320 SIEMENS 840D SL
Speed	31.5–6300 rpm
Feed rate	2–3600 mm/min continuously variable
Rapid feed	4000 mm/min
Power	1.6/2.0 kW
Tail spindle	Vertical 80 mm and horizontal 65 mm extending tail spindles SK40 with DIN 2080 or DIN 69872 clamping system
Axes	X/Y/Z 300/300/400 mm
Angle table	Fixed table, 620 x 390 mm, max. load 250 kg
FPS - Standard	Completely refurbished machine, as new in terms of mechanics and electronics. The control system, drive package and drive motors were completely renewed and brought up to date in the course of the complete refurbishment.

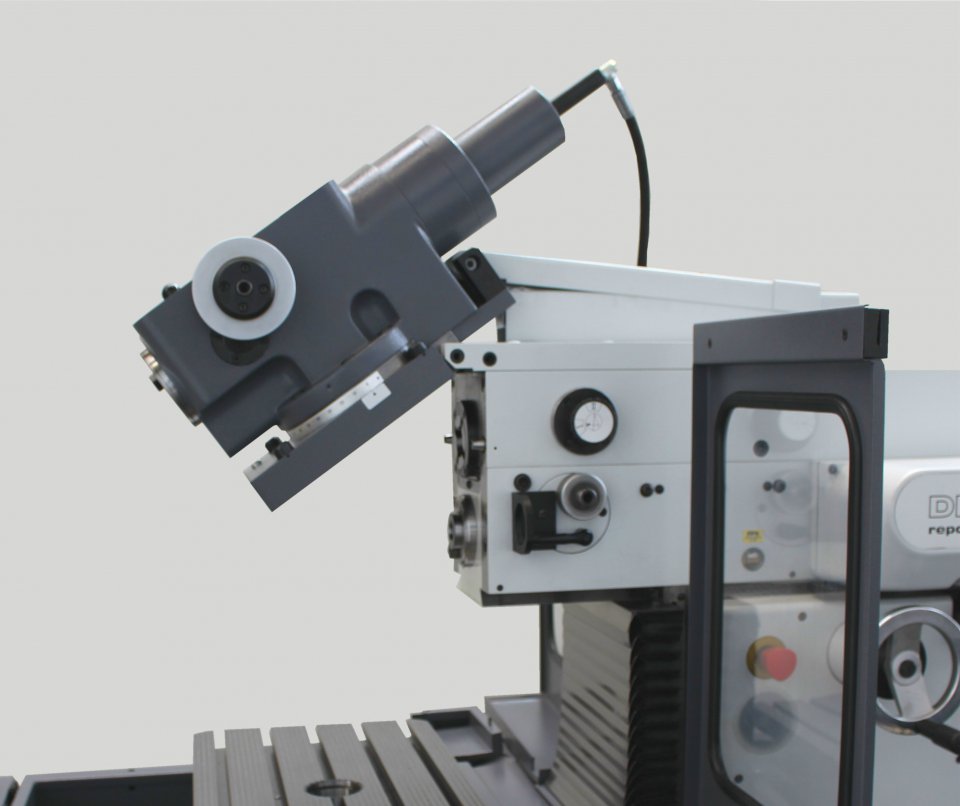

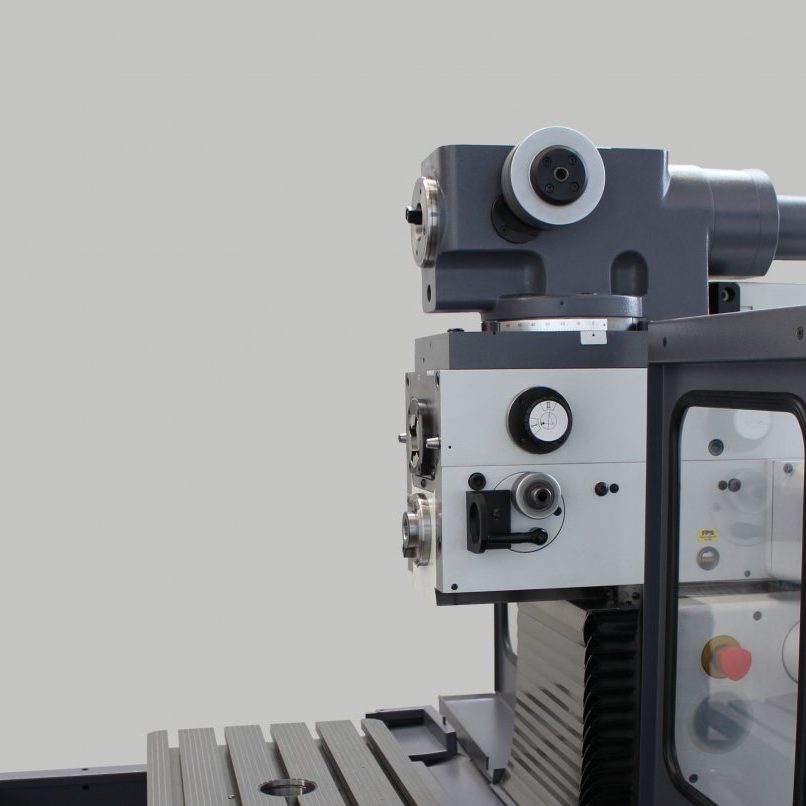

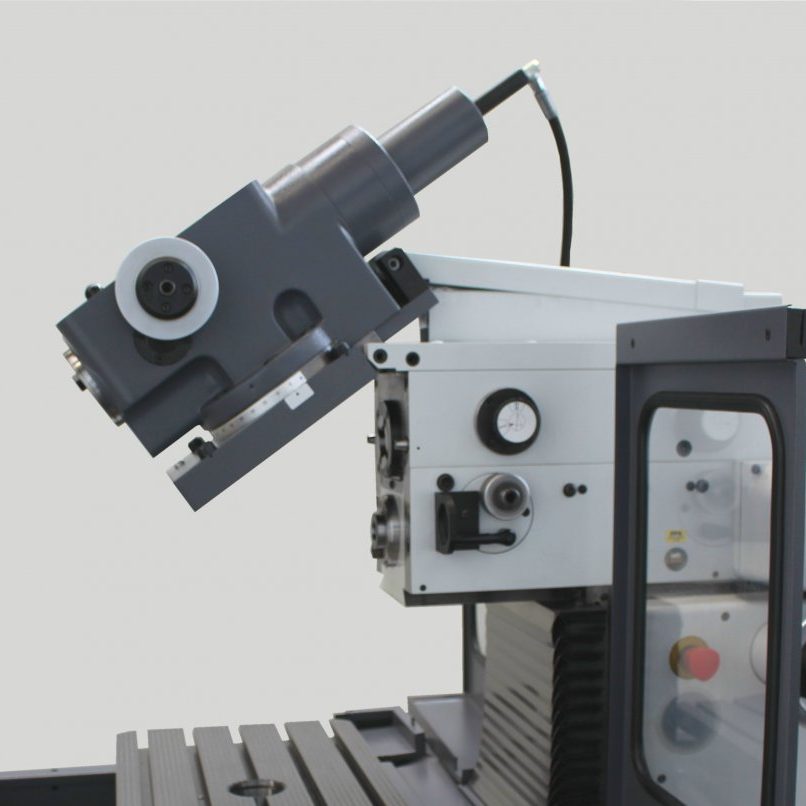

Specifications	Vertical milling head as folding head Clamping area: 700 x 500 mm Vertical and horizontal spindle Manually swivelling milling head (+/- 90°) Machine has mechanical handwheels for all axes. Hydromechanical clamping system SK40 with DIN 2080 or DIN 69872 tightening bolts Programming: Deckel Dialog 4 - Dialog-guided programming with versatile machining cycles. Heidenhain TNC 320 - Heidenhain - Klartext or DIN / ISO programming Siemens 840D SL - User interface Siemens ShopMill and DIN / ISO programming.
Optional items	Electronic handwheel Spray guard cabin Swarf tray NC rotary table NC indexing head Universal machining table Special paint coating etc.
