FPS universal milling and drilling machine

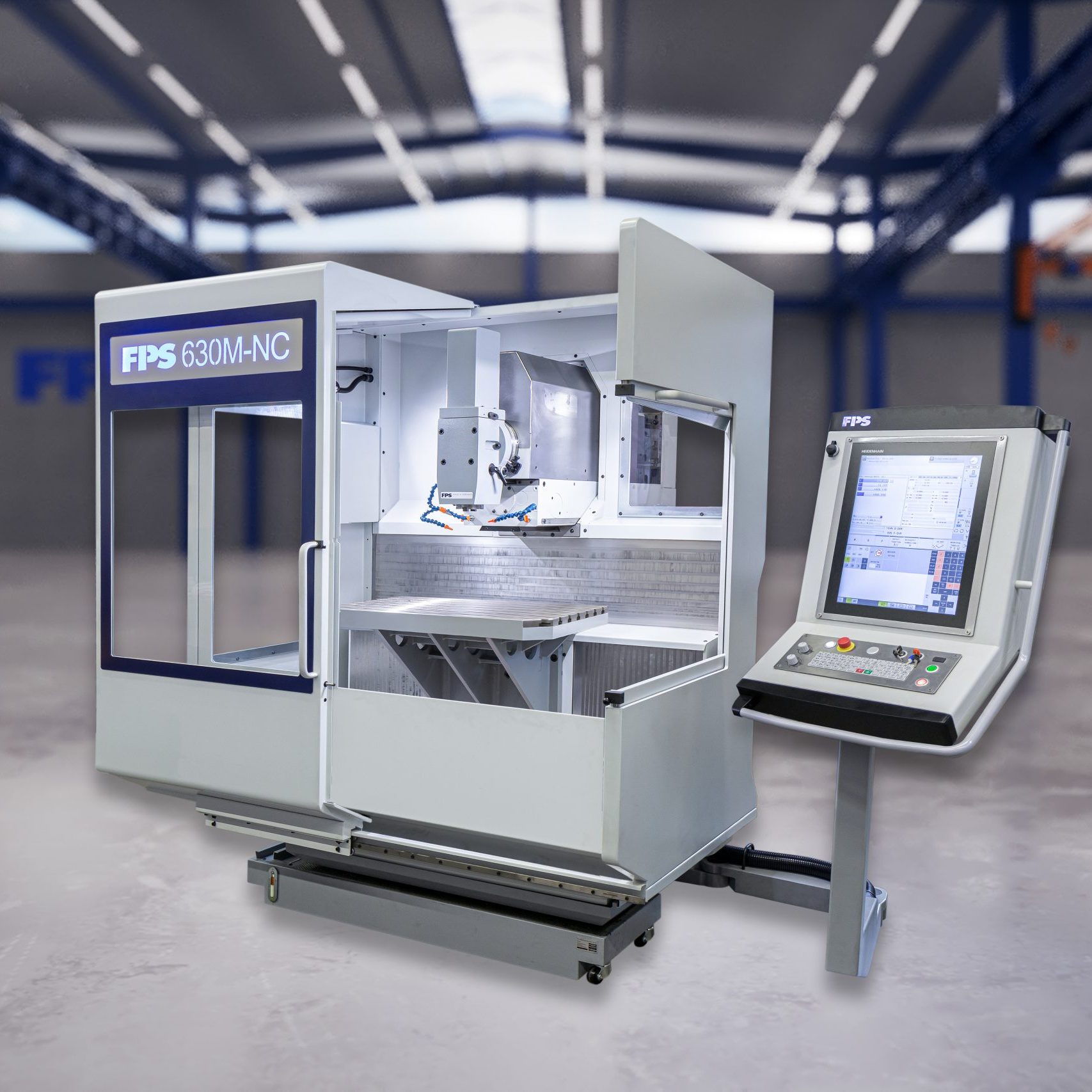

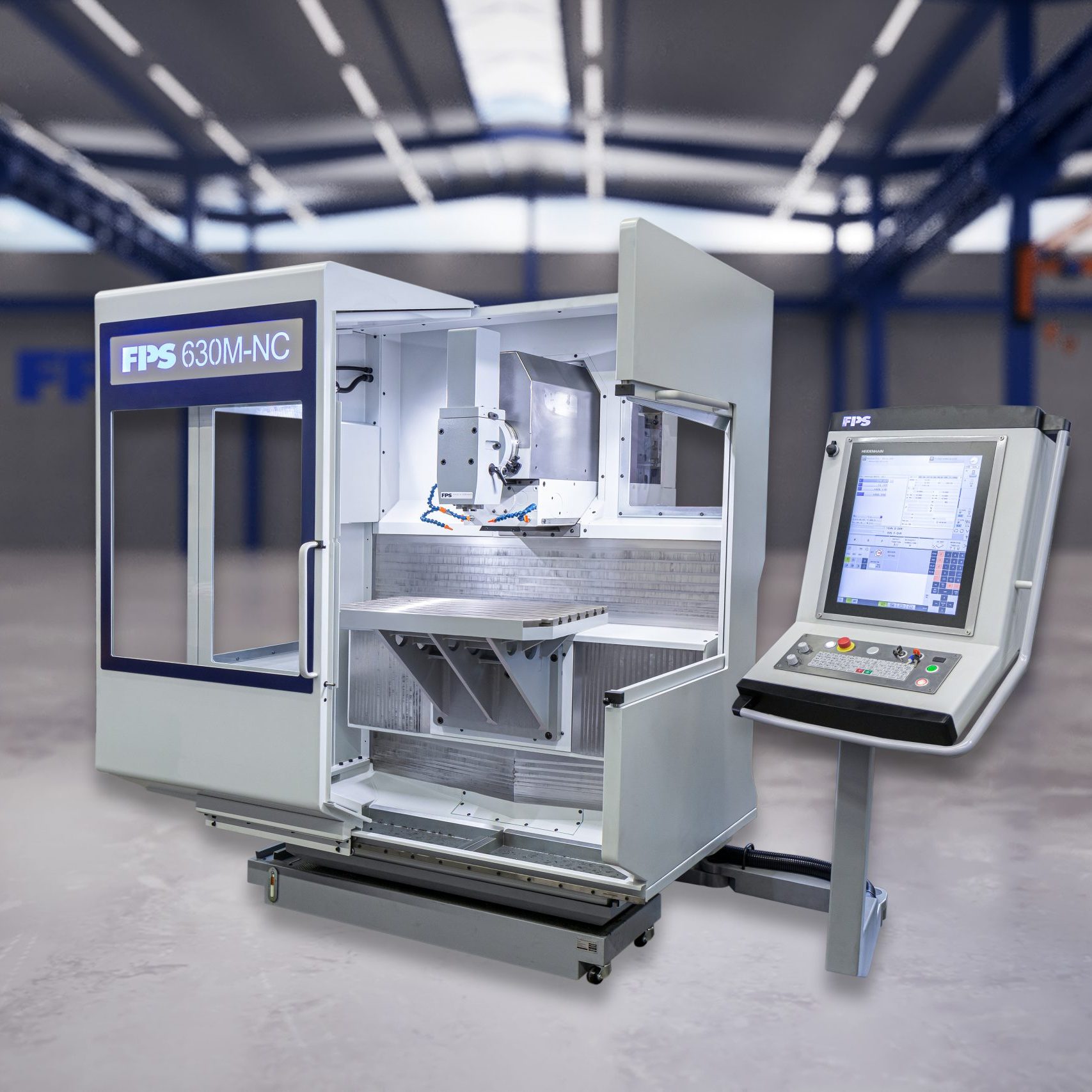

FPS 630M-NC
Technical data
FPS 630M-NC |
|
|---|---|
Operating area |
|
| X-axis | 630 mm |
| Y-axis | 450 mm |
| Z-axis | 400 mm |

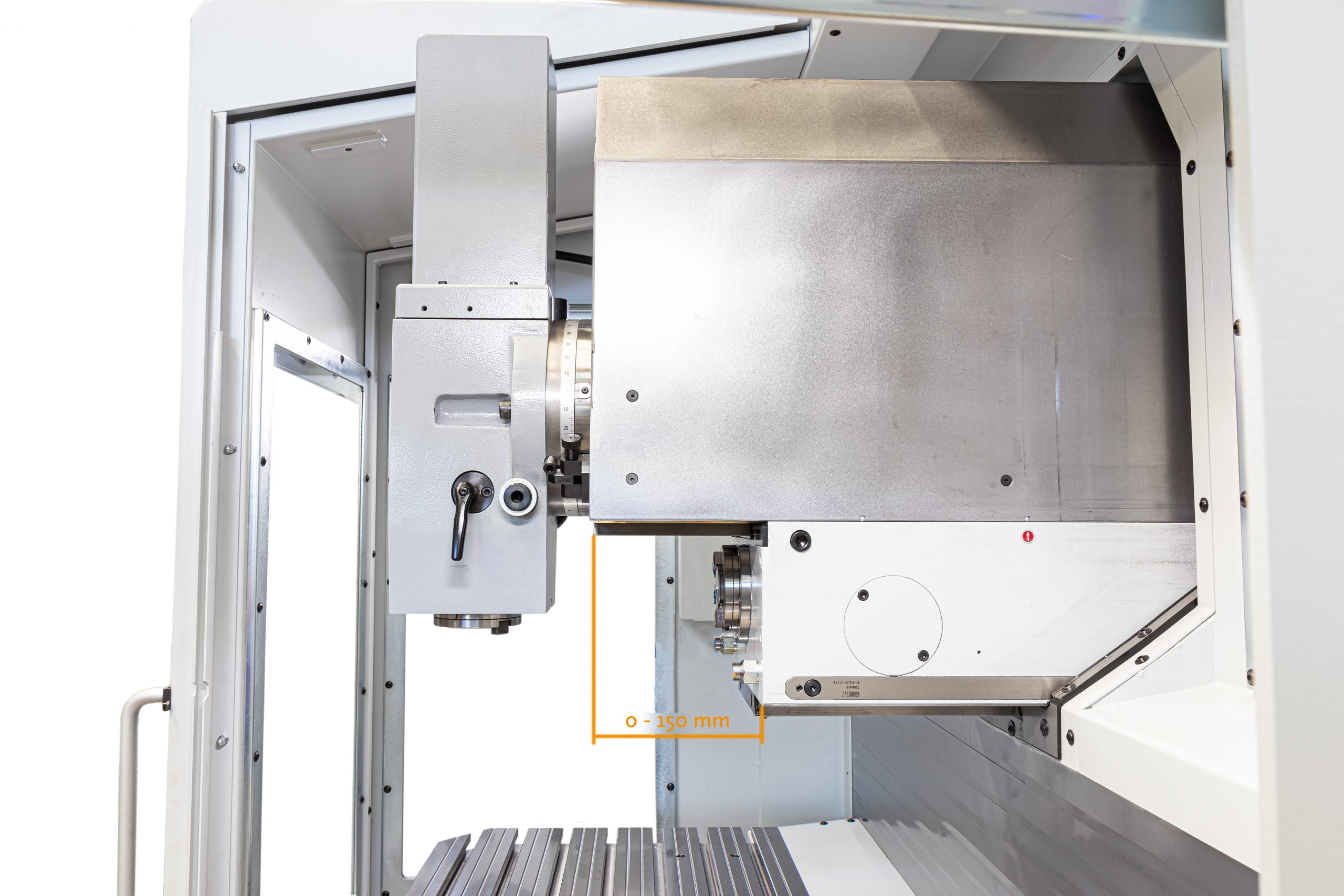

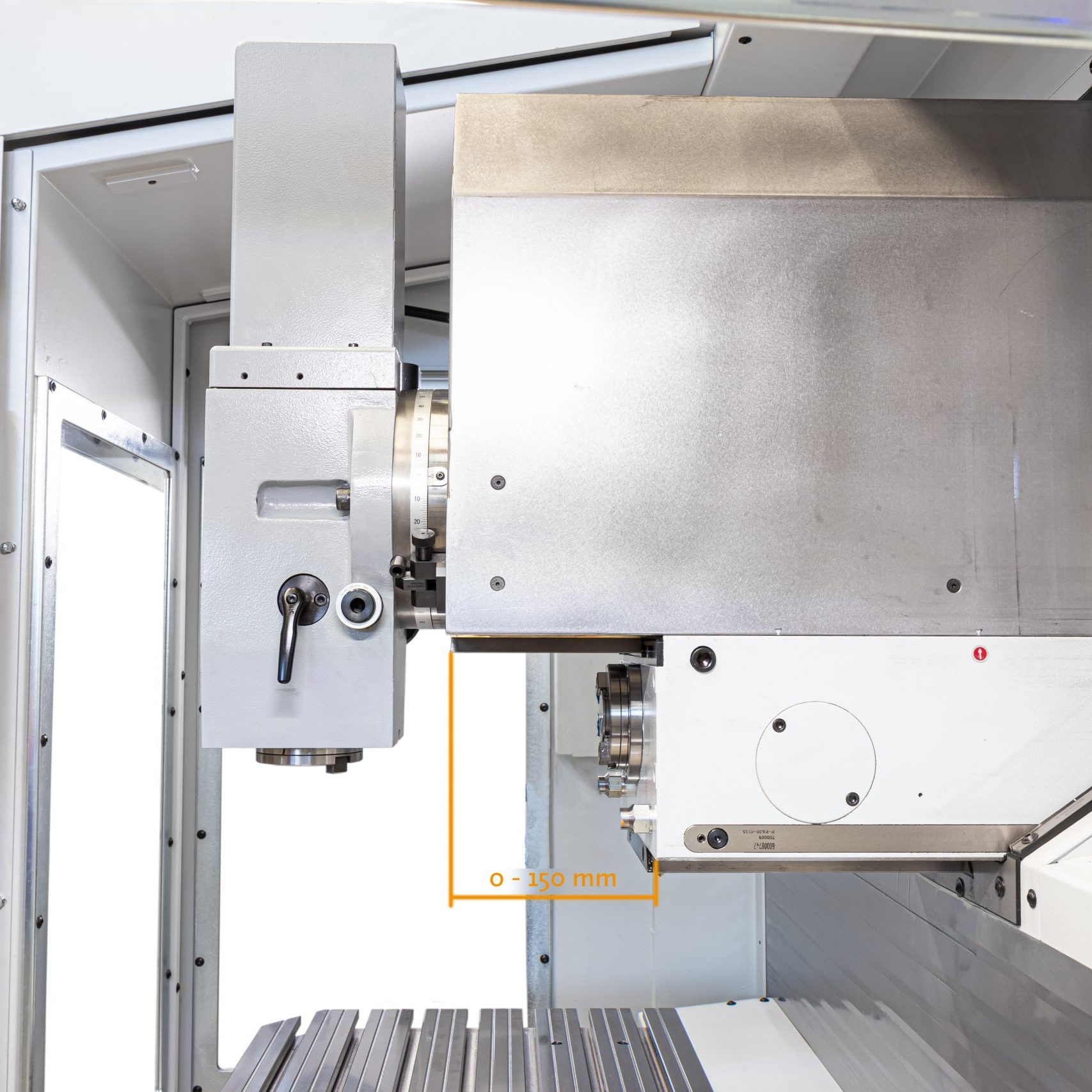

| Milling head can also be moved further along the Y-axis | 150 mm |

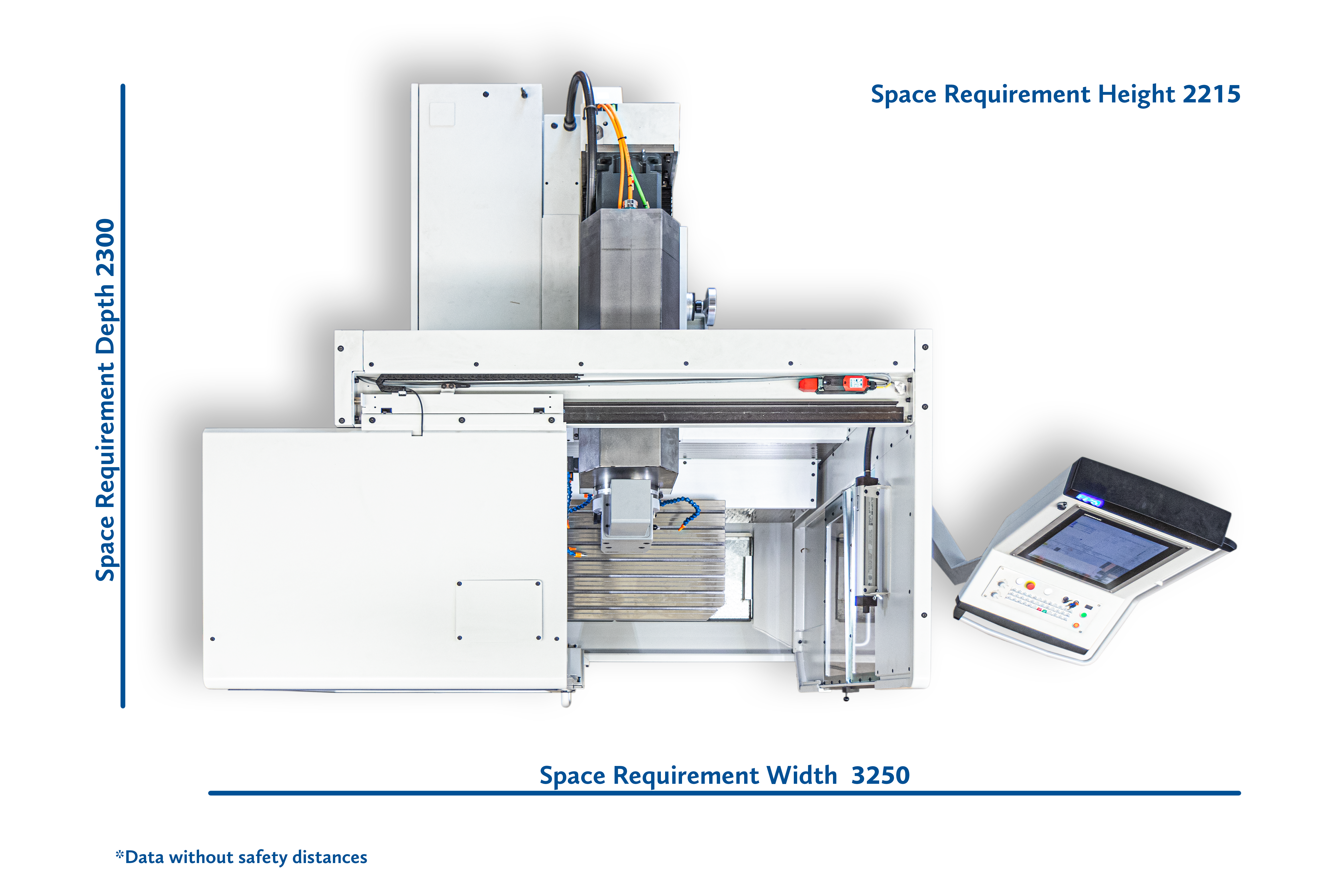

| W x D x H space | 3250 x 2300 x 2215 mm |
Fixed table |
|
| Fixed Table/clamping surface | 800 x 470 mm |
| T-grooves: Number / width / distance | 6 / 14H12 alignment groove 12H7 / 63 mm |
| Permitted load | 350 kg |
Operating spindle |
|
| Vertical and horizontal | horizontal (optional) |

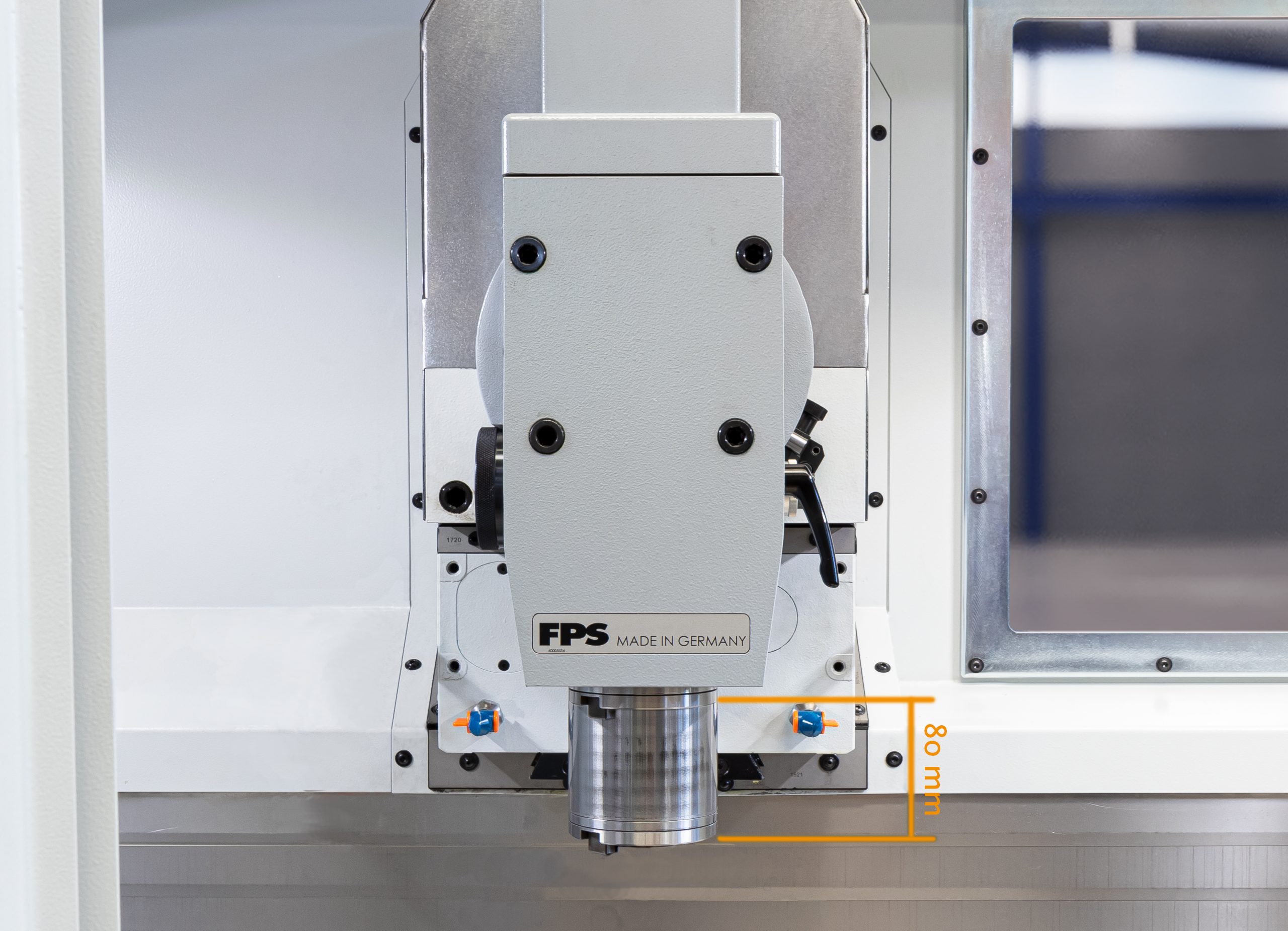

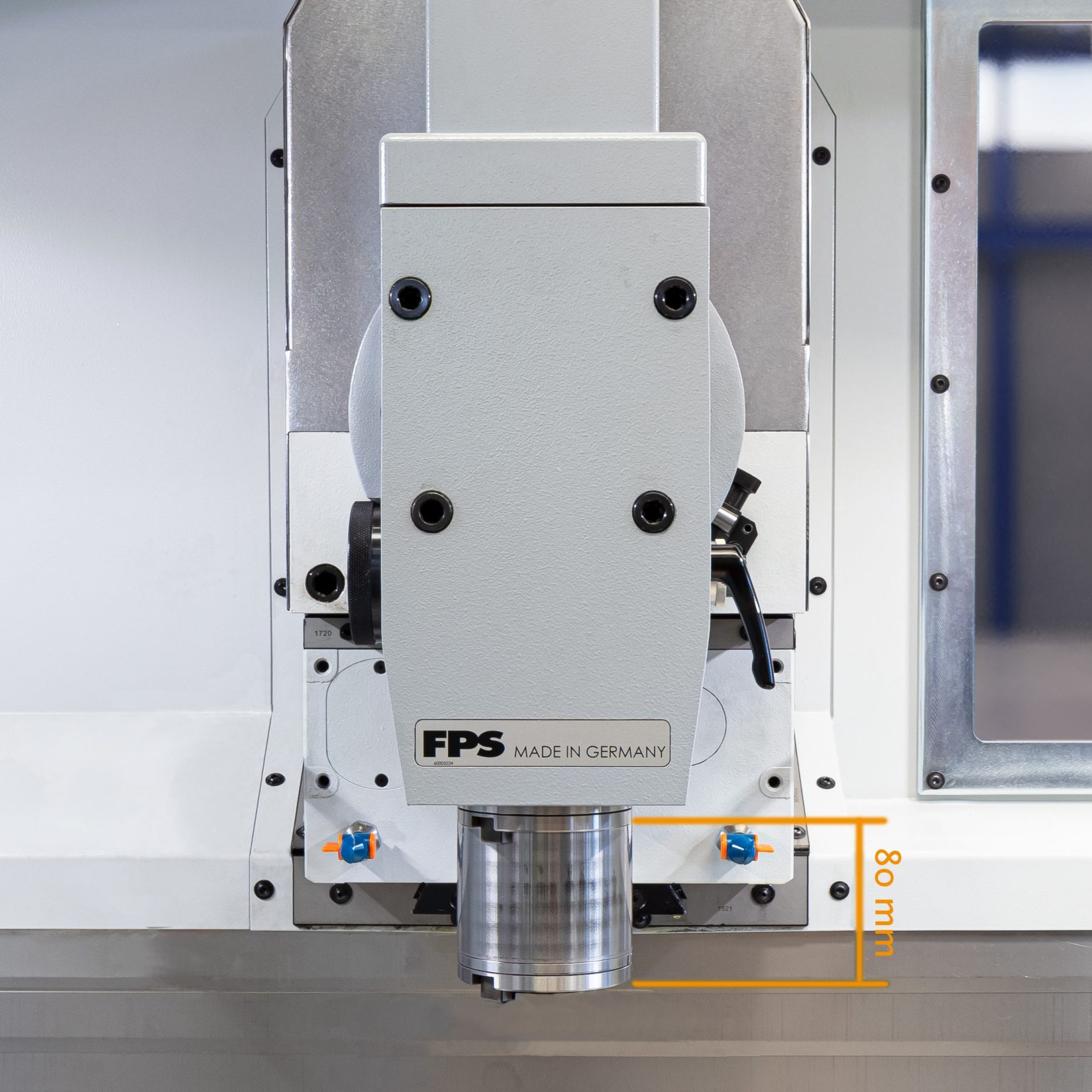

| Vertically extending as drill spindle, with clamp/stroke | approx. 80 mm |

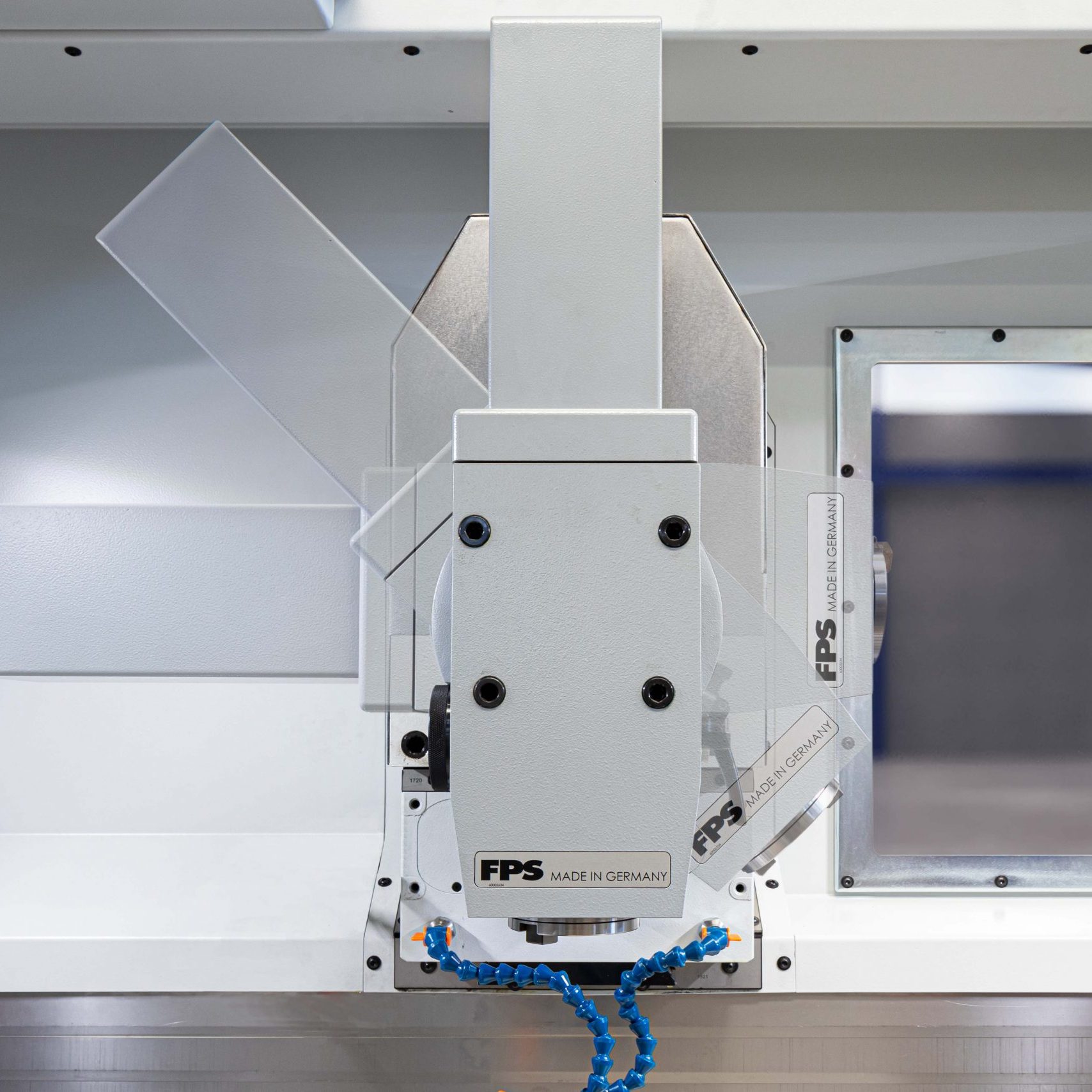

| Manually rotating milling head | +/- 90° |
Tool holder |
|
| with hydraulic tool clamping | ISO 40 DIN 69871 |
Tightening system |
|
| Hydraulic tightening system | DIN 69872 (standard) DIN 2080 (optional) |
Main drive, three-phase-current brake motor |
|
| Power | 14,1 kW |
| Torque | 243 Nm |
| Spindle speed | 0 to 5000 rpm (stepless adjustable) |
Feed drive, digital drive |
|
| Feed rate, continuously variable | 0 to 10000 mm/min |
| Rapid feed | 10 m/min |
| Control wheel manual rotation | 2.5 mm |
Connection |
|
| Mains connection | 3 x 400 VAC 50 Hz 25 A |
| Max. prelim. fuse rating | 35 A |
| Mains configuration | TN-S connection type: Fixed connection |
Control cabinet electronics |
|
| CE-compliant in line with current regulations of professional associations | BGVA 3 / DIN EN 60204-1 |
Weight |
|
| Total machine weight incl. machining table, milling head, cabin and control cabinet | approx. 2640 kg |
