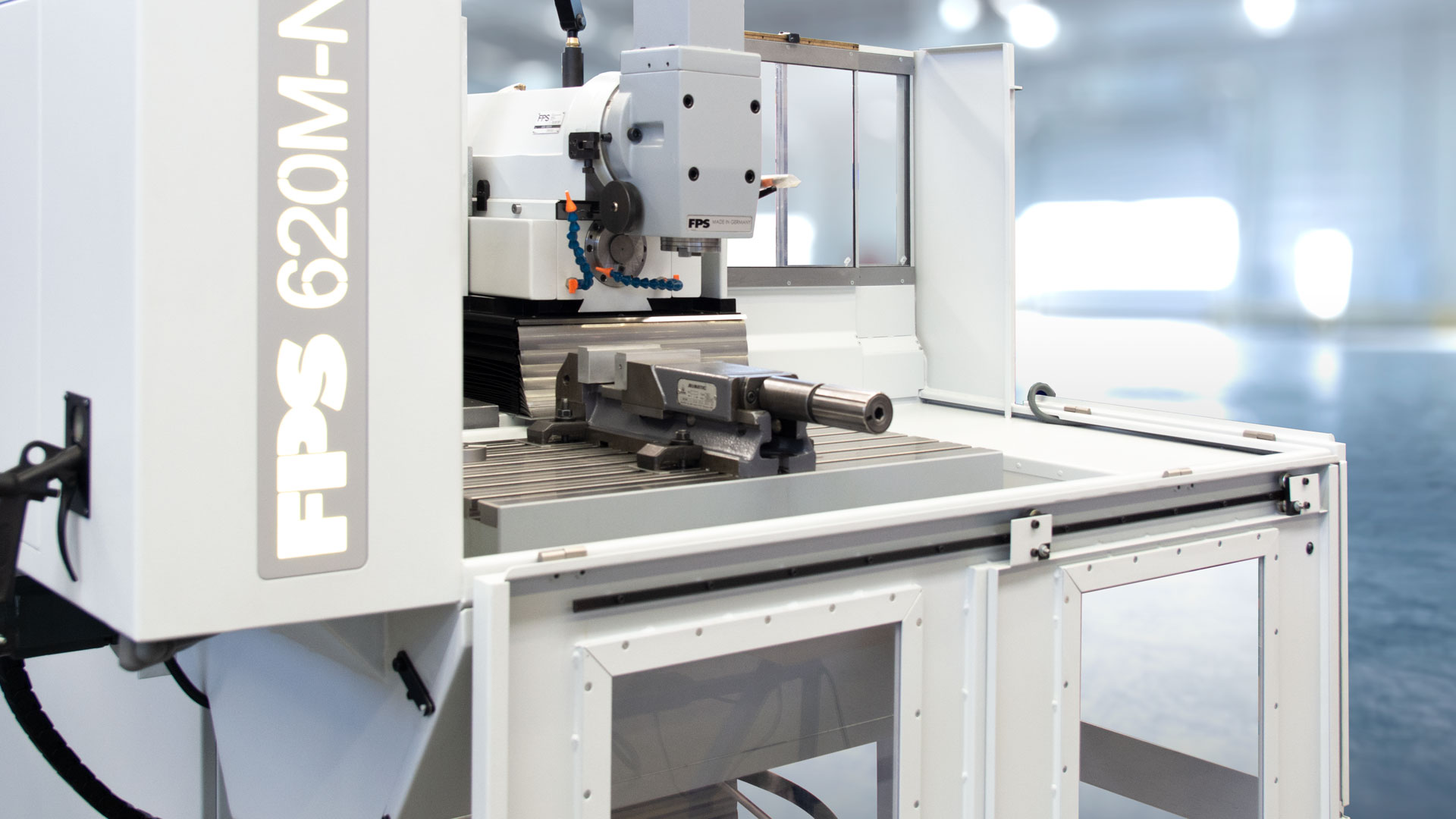

Foldable spray guard cabin for optimum accessibility

The milling head can be swivelled by 180° - this allows easy retooling of the working plane from vertical to horizontal and back. The spindle speed is infinitely variable up to 4500 rpm.

Strong and robust in every detail.

The trend-setting CNC controls from SIEMENS and HEIDENHAIN are perfectly matched to the machine. The uncomplicated operation and simple program generation make working on the machine particularly convenient.

Manual hand wheels on all 3 axes. Particularly sensitive and easy to operate.

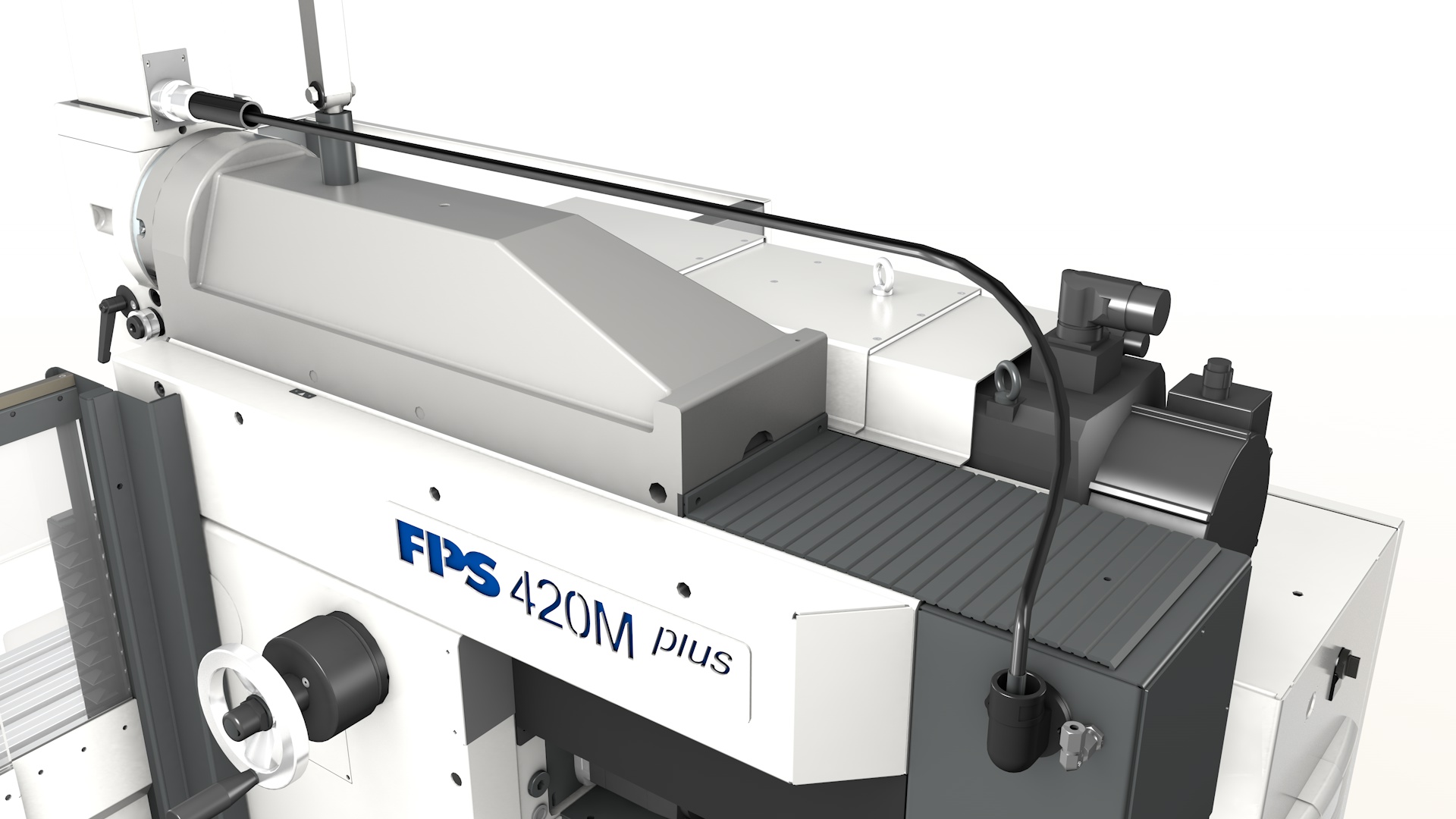

Screw drive

• Drive power : 5,5 / 7,0 KW
• Speed: 0 - 4500 rpm infinitely variable
• 2 gear stages right - and left rotation
• Ball screw spindles in all axes

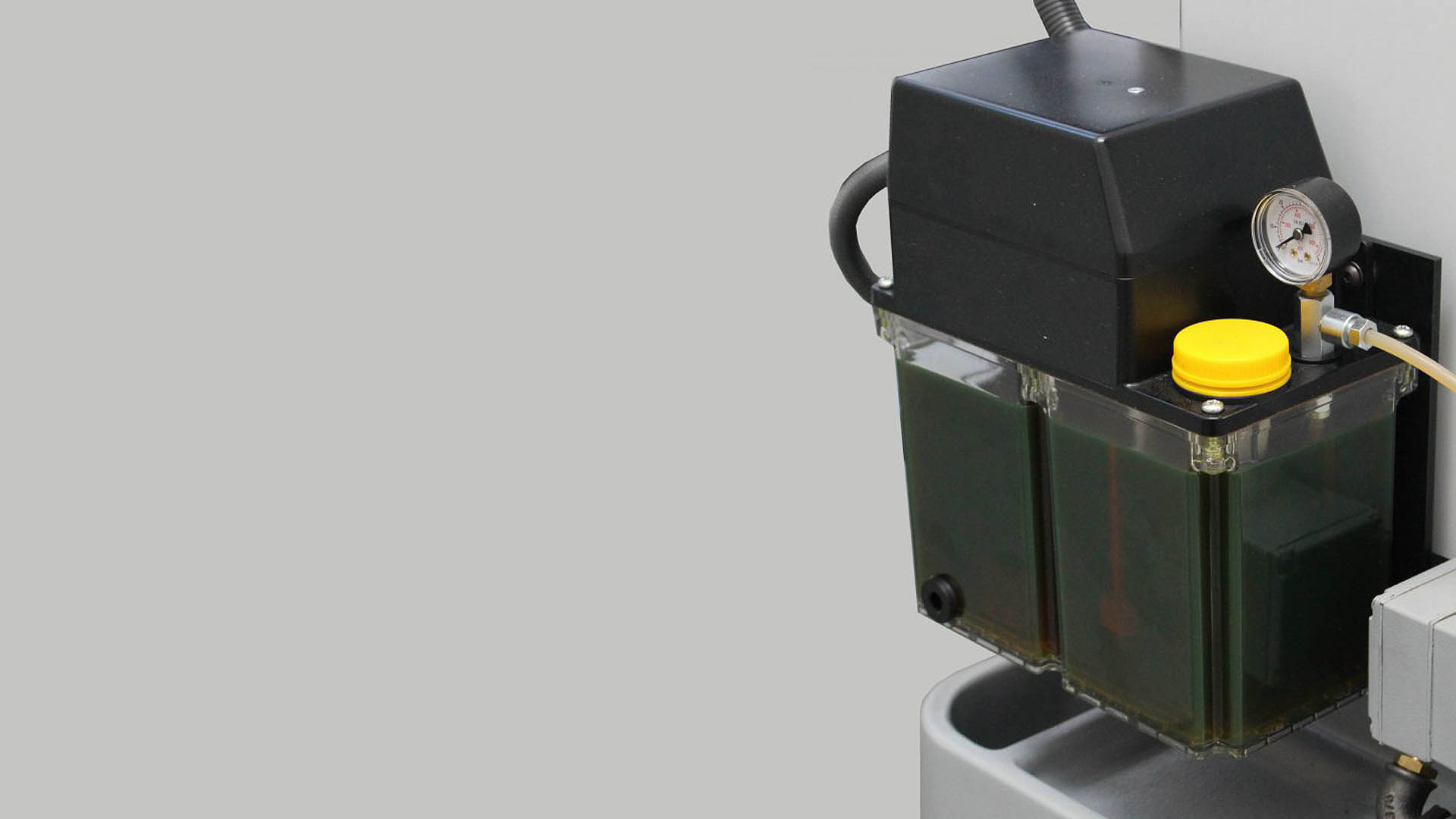

Central lubrication and (optional) minimum quantity lubrication easily accessible.
